LaunchControl Mini

Simple. Elegant. Always within reach.

Control your RV from wherever you are. LaunchControl Mini is a compact wireless control panel that provides instant access to your most important RV systems—without reaching for your phone or walking to the main control panel. Paired with LaunchControl HUB, it delivers a fast, responsive interface that is always ready, whether you are relaxing in bed, working in the kitchen, or checking system status from the driver’s seat.

Designed to blend seamlessly into your RV, the Mini Touch Panel features a brilliant AMOLED display, fast touch response, and an elegant interface that's as enjoyable to use as it is functional.

REQUIRES LAUNCHCONTROL HUB

Features

• Bright, high-resolution 1.75" AMOLED touchscreen
• Wireless connection to LaunchControl HUB
• Instant access to your most frequently used controls

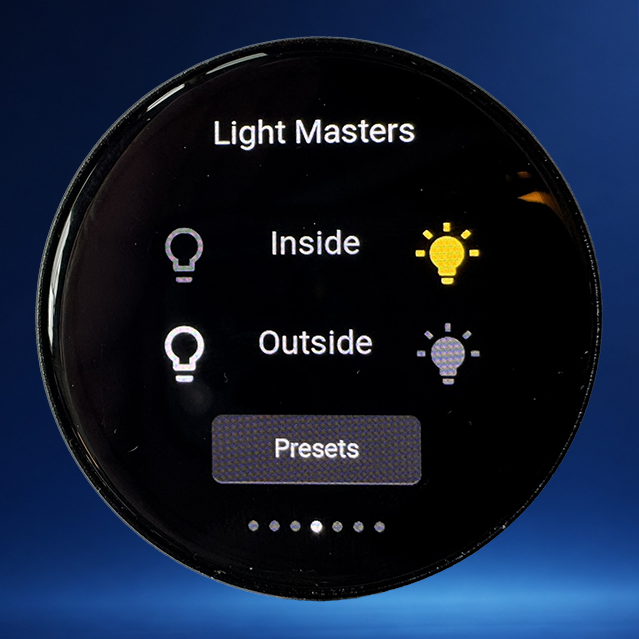

• Control lighting, inverter, water pump, communications, climate, and more

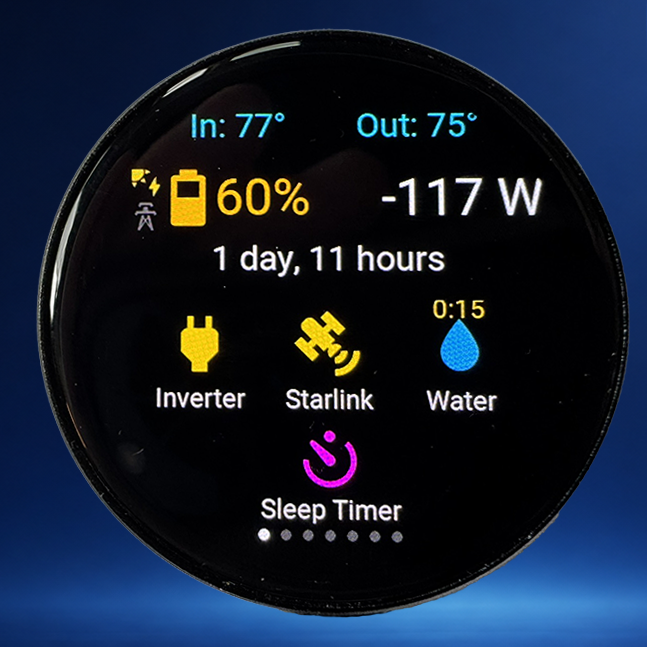

• Dedicated power page

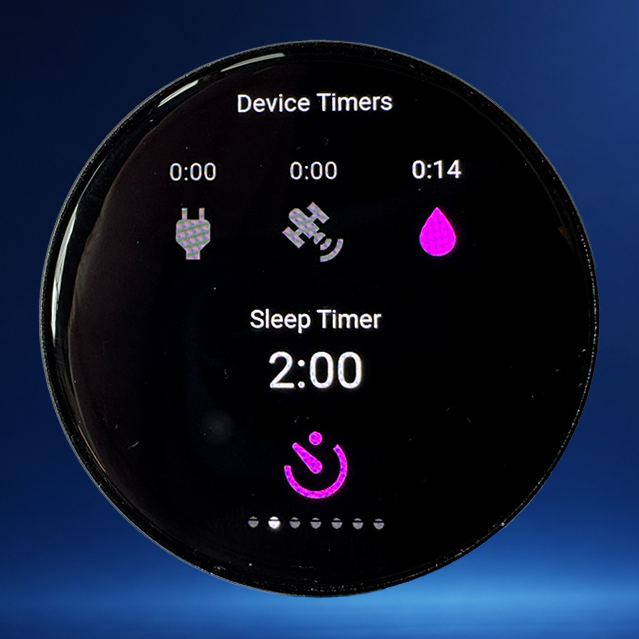

• Dedicated timers for inverter, water pump, and communications systems

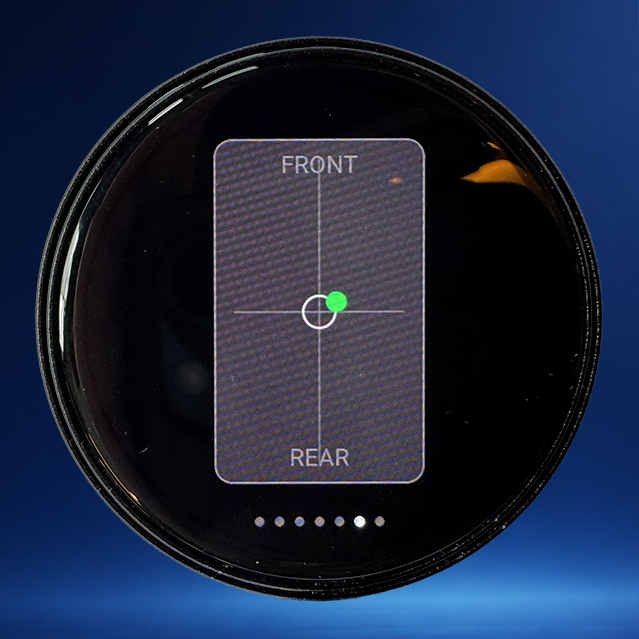

• Dedicated RV level with calibration page
• Built-in sleep timer to automatically turn off selected systems each night

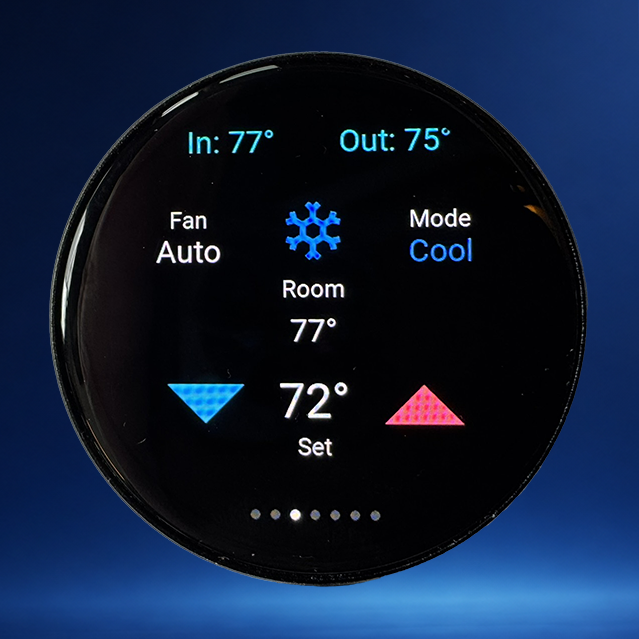

• Full heating and air conditioning controls
• Optional indoor and outdoor temperature monitoring with Ruuvi sensors
• Night mode with dimmed clock and at-a-glance system status
• Fast, smooth, and highly responsive touch interface
• Perfect for the bedside, entryway, driver’s area, or other convenient locations
• USB powered or permanently hardwired for a clean installation
• Compact design that blends naturally into your RV interior

What’s Included

• LaunchControl Mini
• Mounting Velcro

Specifications

• 1.75" AMOLED Touchscreen, 466x466 resolution
• 2" (51mm) diameter, .5" (12mm) depth
• Weight: 1.4 oz

• Input power USB-C or bare wire: 4.75–5.25 V
• Typical power consumption: .6 W
• Wireless: 2.4GHz Wi-Fi (802.11 b/g/n)
• Onboard QMI8658 6-axis IMU (For leveling)
